Trek Dual Sport 2 Generation 5: Your Ultimate Versatile Companion
Experience the Trek Dual Sport 2 Gen 5, a versatile and confident hybrid bike engineered to deliver an enjoyable ride from smooth roads to rugged rail trails and beyond. Featuring a lightweight frame, a robust drivetrain with 18 speeds, and powerful hydraulic disc brakes, this bike ensures exceptional stopping power. Cloud-like wheels and robust tires soak up bumps and challenging terrains, providing a comfortable and assured ride on various surfaces, spanning from roads to light gravel trails.
Ideal for: Designed for enthusiasts seeking a hybrid bike suitable for leisure rides, fitness endeavors, daily commutes, and errands. The Dual Sport 2 is an agile and capable companion ready to tackle any adventure, with features to ensure comfort across diverse terrains.
Technological Features:
- A sleek aluminum frame equipped with internal cable routing, rack and mudguard mounts for added utility, wide 650b wheels, and generous 50c tires for enhanced capability and comfort on a range of surfaces.
- A reliable 2x9 Shimano drivetrain with an extensive gear range ensures effortless pedaling, ergonomic grips for enhanced comfort, and powerful hydraulic disc brakes guarantee all-weather braking performance.
The Last Word: The Dual Sport 2 excels as an all-terrain hybrid bike catering to off-road adventures and urban exploration alike. Whether you're venturing on gravel paths or commuting to work, this bike offers the versatility and confidence to conquer every journey with ease.
Why You'll Adore It:
- Enjoy a smooth and confident ride akin to a suspension fork through firm wheels and wide tires, offering unmatched terrain-smoothing comfort and grip without the extra weight.
- Versatile gravel tires provide speed on roads and traction on rough terrains, ensuring performance across various surfaces.
- Internal cable routing enhances protection against the elements while contributing to a sleek and streamlined aesthetic.
- Effortlessly personalize your frame with accessories like racks, mudguards, lights, and kickstands for added convenience and functionality.
Specification
Trek Dual Sport 2 Gen 5 Specification
FRAMESET
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
| Fork | Dual Sport alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR |
WHEELS
| Hub Front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer Front | 139x5 mm bolt-on |
| Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer Rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" |
DRIVETRAIN
| Shifter | Shimano Altus M2010, 9-speed |
| Front Derailleur | Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull |
| Rear Derailleur | Shimano Altus M2000, long cage |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom Bracket | Sealed Cartridge, 68 mm |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC X9 |
| Pedal | Wellgo nylon body, alloy cage |
| Max. chainring size | 1x: 42T; 2x/3x: 48T |
COMPONENTS
| Saddle | Bontrager Sport |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Handlebar |
Size: M Size: L, XL |
| Grips | Bontrager Satellite |
| Stem |
Size: M, L Size: XL |
| Brake Set | C-Star BH-RS925T hydraulic disc, 160 mm rotor |
| Rotor Size | Max brake rotor sizes: 160 mm front & rear |
WEIGHT
| Weight | M - 12.79 kg / 28.2 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
Trek Dual Sport 2 Gen 5 Sizing
| Size | Rider Height | Inseam |
| XS | 147 - 155 cm (4'10" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 72 - 78 cm (28" - 31") |
| M | 165 - 175 cm (5'5"- 5'9") | 77 - 83 cm (30" - 33") |
| L | 175 - 186 cm (5'9" - 6'1") | 82 - 88 cm (32" - 35") |
| XL | 186 - 197 cm (6'1" - 6'6") | 87 - 93 cm (34" - 37") |

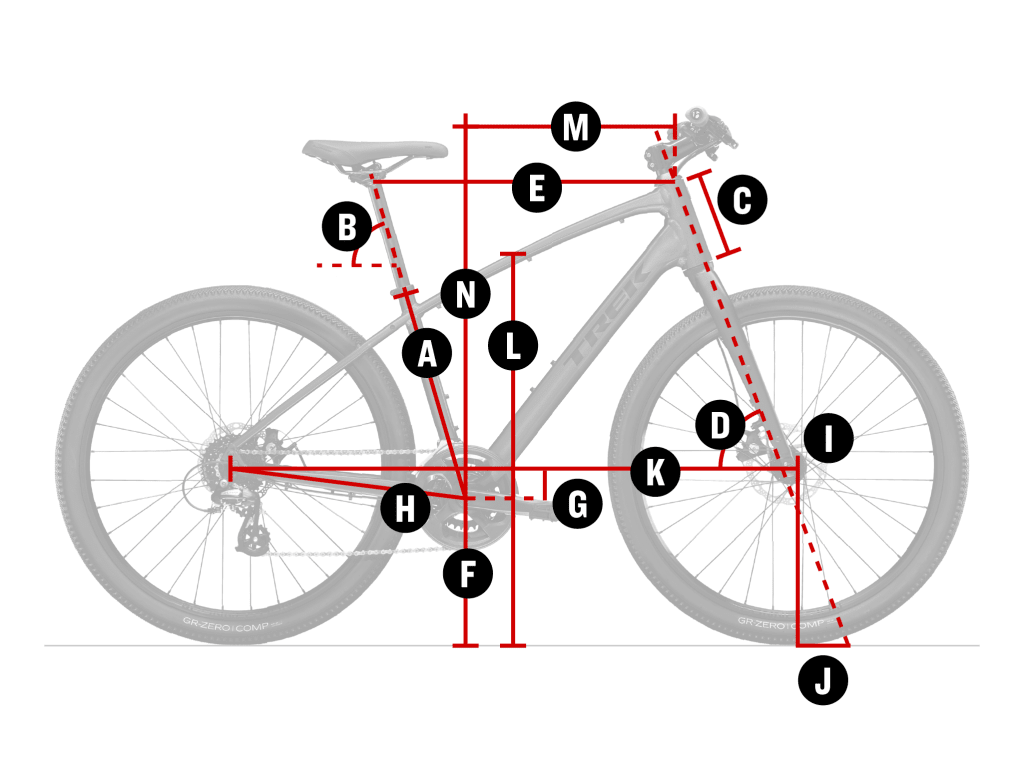

Geometry
Trek Dual Sport 2 Gen 5 Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Letter | M | L | XL |
| Wheel Size | 27.5" | 27.5" |
27.5" |
| A - Seat Tube | 42.0 |
46.5 |
52.0 |
| B - Seat Tube Angle | 73.3° |
72.8° |
71.8° |
| C - Head Tube Length | 16.5 |
19.0 |
21.5 |
| D - Head Angle | 70.3° |
70.8° |
71.8° |
| E - Effective Top Tube | 56.5 |
58.5 |
61.5 |
| F - Bottom Bracket Height | 28.9 |
28.9 | 28.9 |
| G - Bottom Bracket Drop | 6.0 |
6.0 |
6.0 |
| H - Chainstay Length | 44.7 | 44.7 | 44.7 |
| I - Offset | 3.9 | 3.9 | 3.9 |
| J - Trail | 8.3 | 8.0 | 7.4 |
| K - Wheelbase | 106.3 |
107.2 | 107.9 |
| L - Standover | 76.1 |
80.0 | 84.3 |
| M - Frame Reach | 38.5 |
39.1 | 40.1 |
| N - Frame Stack | 59.8 | 62.4 |
65.2 |
